Acceptor-Connector Pattern

Table of Contents

• Overview
• Simplified Acceptor-Connector framework implementation
  • Structure
  • Event infrastructure layer classes
  • Connection management layer classes
    • ServiceHandler
    • Acceptor
    • Connector
  • Application layer classes
    • Server application
      • AcceptorImpl
      • InputHandler
    • Client application
      • Client
      • ConnectorImpl
      • OutputHandler
      • Dynamics
  • Directory and file structure

Overview

This post covers the following topics:

• The Acceptor-Connector pattern [POSA2] for decoupling connection establishment and initialization from application logic.
• A simplified implementation inspired by the Adaptive Communication Environment (ACE). The source code is available at https://github.com/yjung93/study_ACE_design_pattern

Simplified Acceptor-Connector framework implementation

I built a small, learning-oriented Acceptor-Connector framework to understand how the pattern works and how it fits into a layered design.

This version keeps the core architectural ideas from ACE while intentionally skipping production-level complexity.

The source code is available at https://github.com/yjung93/study_ACE_design_pattern

Structure

The implementation is organized into three layers:

• Event infrastructure layer classes
• Connection management layer classes
• Application layer classes

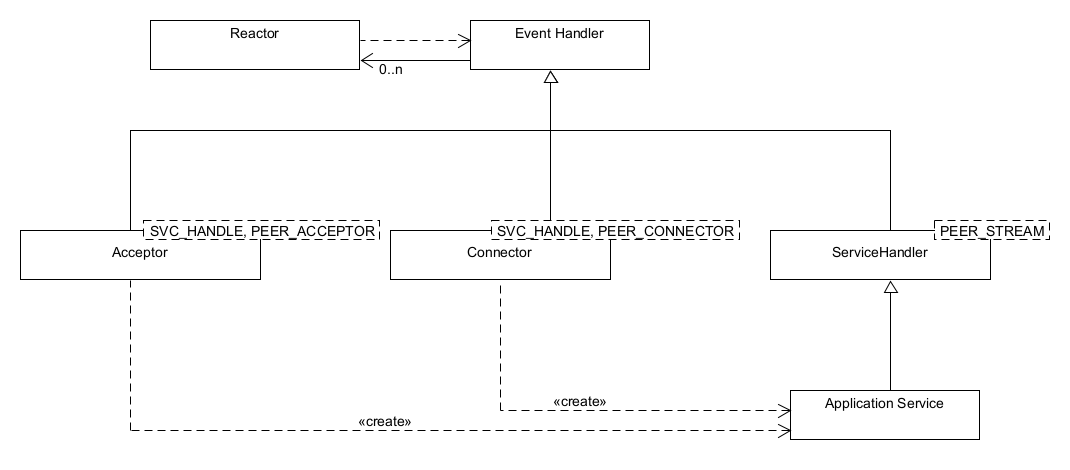

The relationships between classes in this framework are shown below.

Event infrastructure layer classes

This simplified framework is built on top of a Reactor framework that provides event demultiplexing and dispatching. For details, see the previous post: Reactor Pattern.

Connection management layer classes

This layer provides generic, application-independent connection and initialization services. It consists of:

• ServiceHandler
• Acceptor
• Connector

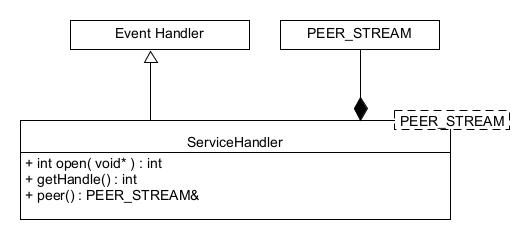

ServiceHandler

• Defines the interfaces needed by an application service implementation.
• Concrete services typically act as a client, a server, or both in a peer-to-peer system.
• Created by an Acceptor or Connector when a connection is established.
• Provides a hook that the Acceptor/Connector calls to activate the service once the connection is ready.
• Exposes a transport endpoint used by the application service to communicate with its peer. The endpoint type is parameterized (template) so the OS-specific I/O implementation stays separate from application logic.

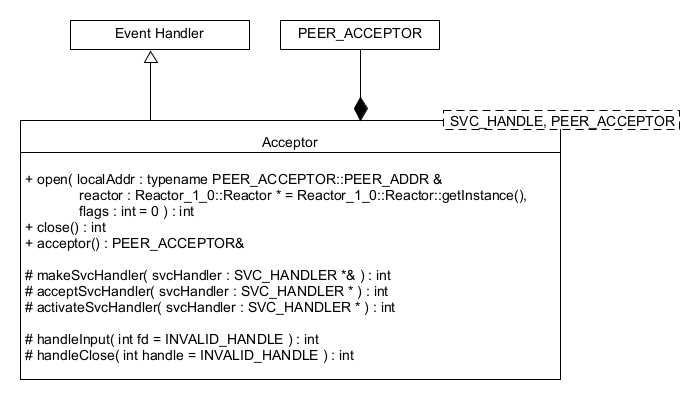

Acceptor

• Passively establishes a connected transport endpoint.
• Creates and initializes the associated ServiceHandler when a connection is accepted.
• Decouples acceptance/initialization from the ServiceHandler that runs application logic.

Interaction sequence

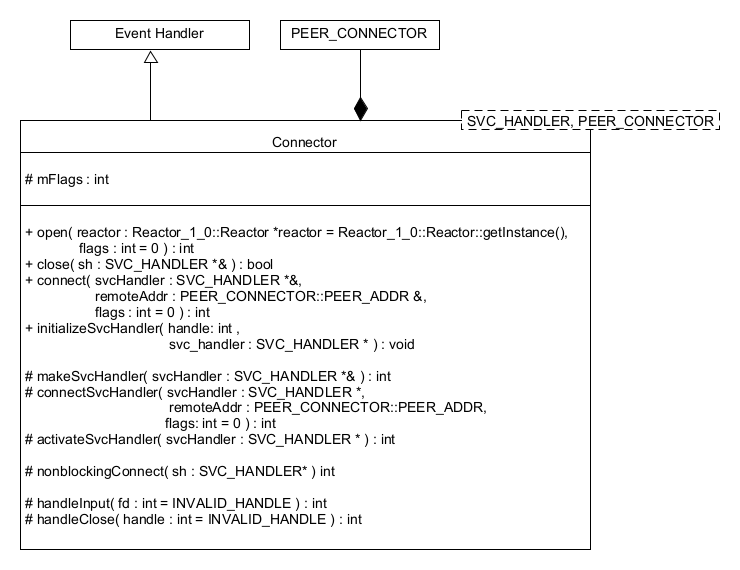

Connector

• Actively establishes a connected transport endpoint.
• Creates and initializes the associated ServiceHandler when the connection completes.
• Decouples initiation/initialization from the ServiceHandler that runs application logic.
• Supports synchronous and asynchronous connection.

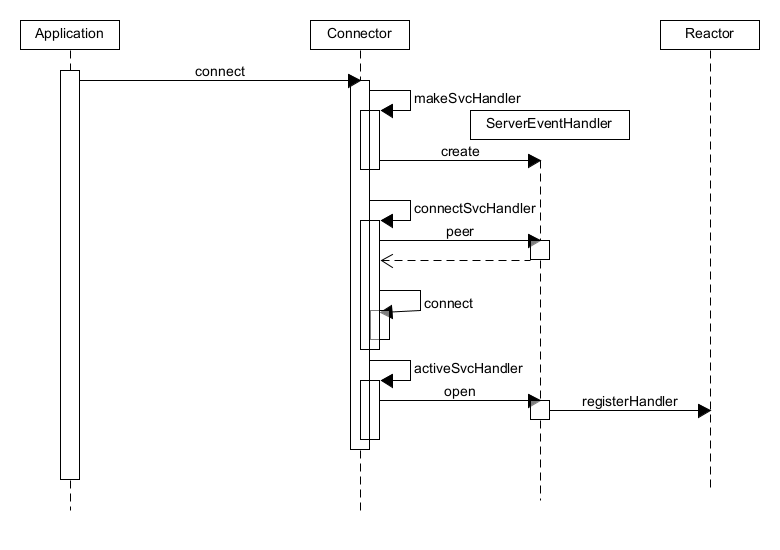

Interaction sequence (synchronous)

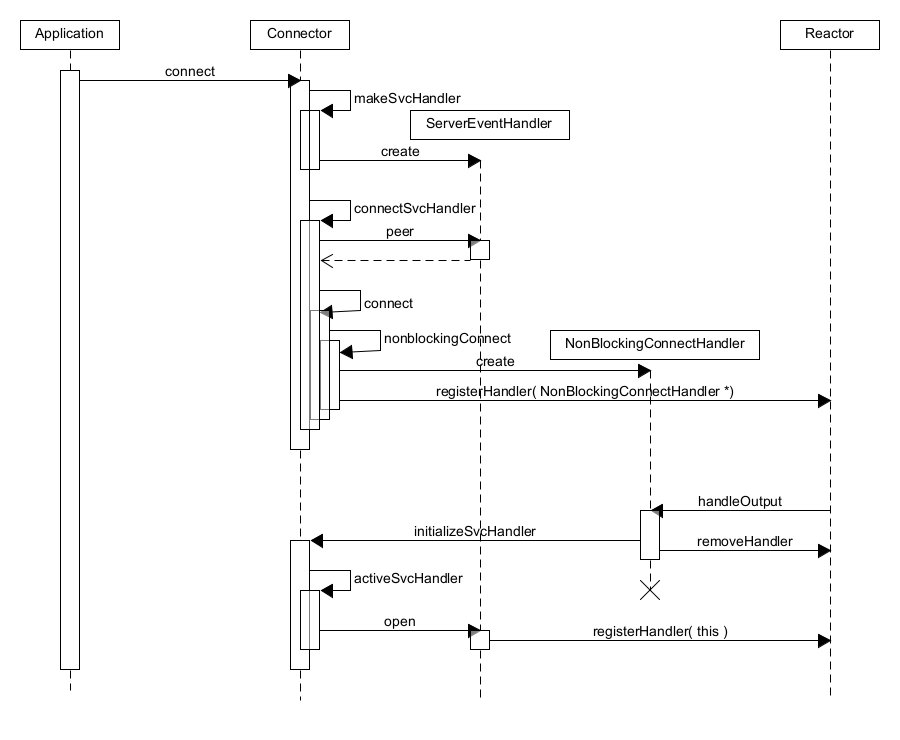

Interaction sequence (asynchronous)

Application layer classes

This layer customizes the generic strategies from the infrastructure and connection layers (via subclassing, composition, and/or template instantiation) to create concrete components that establish connections, exchange data, and implement service behavior.

Server application

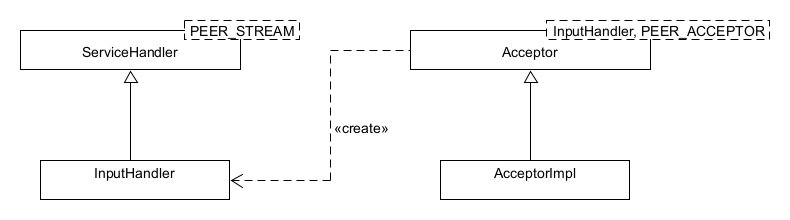

Demonstration server: waits for client connections, accepts them, and echoes messages received from clients.

AcceptorImpl

• Concrete subclass of Acceptor.
• Plays the acceptor role by deriving from the Acceptor class.

InputHandler

• Concrete subclass of ServiceHandler.
• Handles client I/O and echoes back received messages.

Client application

Demonstration client: sends user-typed messages to the server and displays the responses.

Client

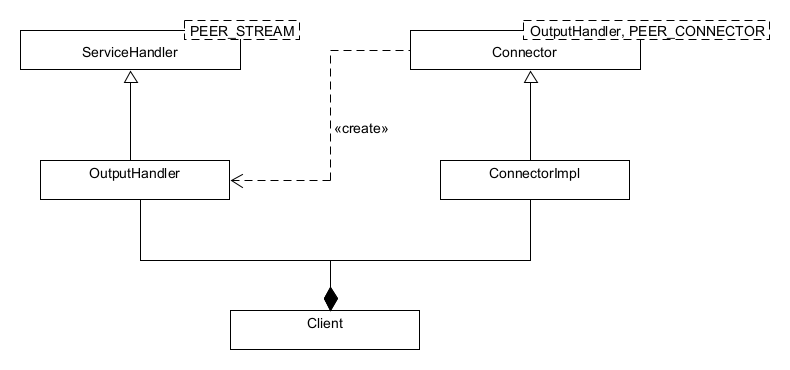

• A facade that composes a Connector and a ServiceHandler.

ConnectorImpl

• Concrete subclass of Connector.
• Plays the connector role by deriving from the Connector class.

OutputHandler

• Concrete subclass of ServiceHandler.
• Forwards user-typed messages to the server and prints replies.

Dynamics

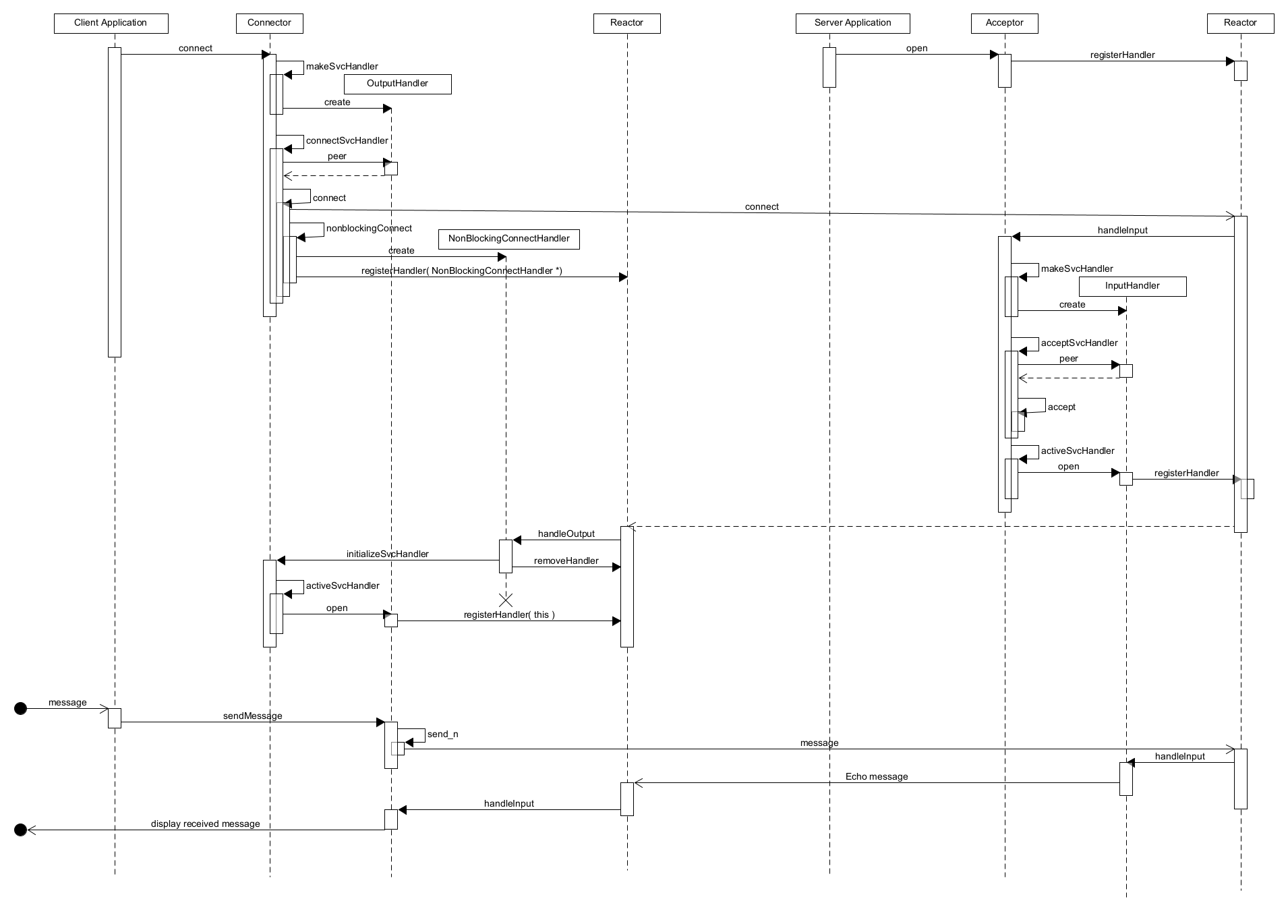

This diagram shows how the client and server components interact to establish connections and run the service logic.
